80kg heavy load intelligent pan tilt motor for cctv camera

Name: 80kg heavy load intelligent pan tilt motor for cctv camera
Rating: 5.0 (71 reviews)

factory price;

80kg load;

Product Description

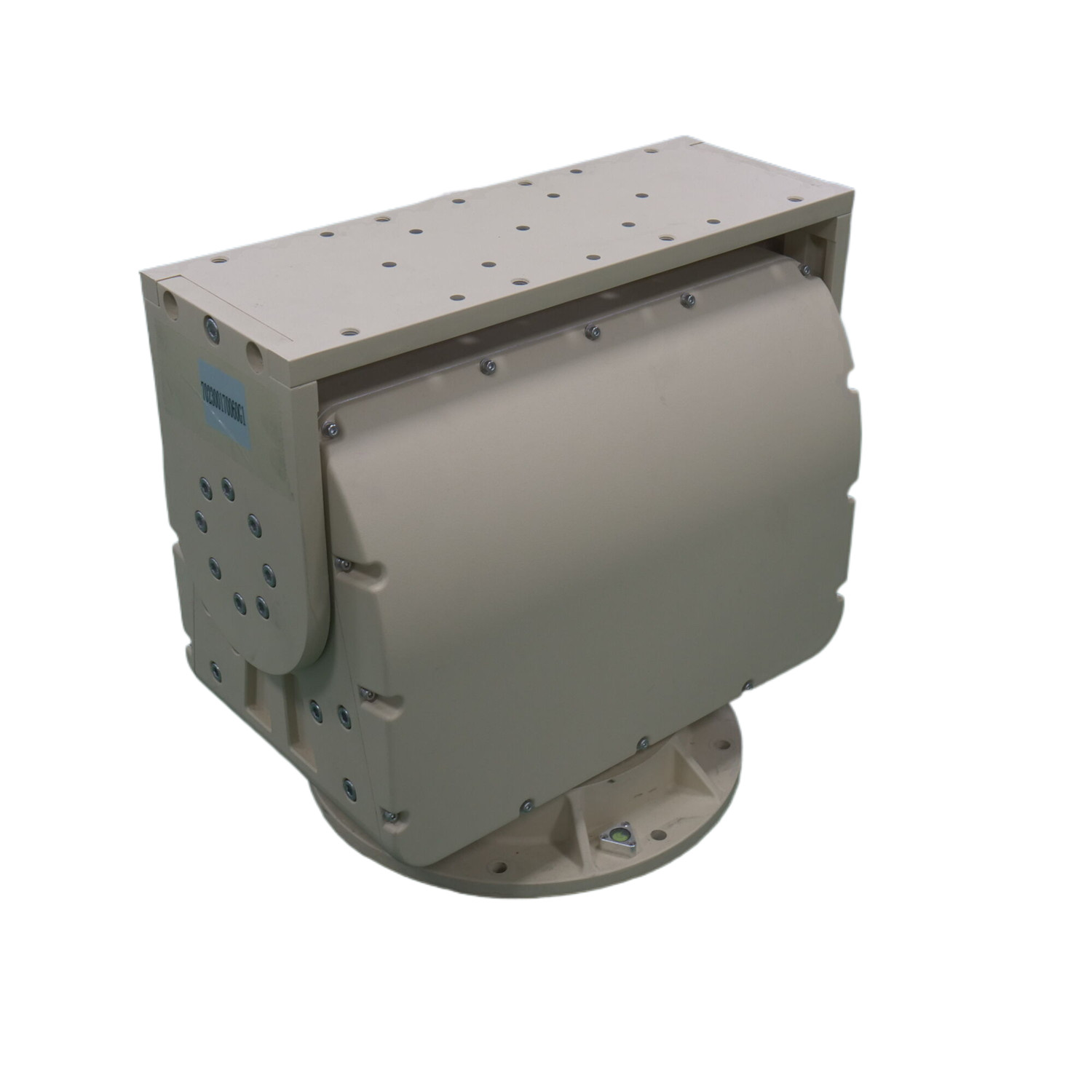

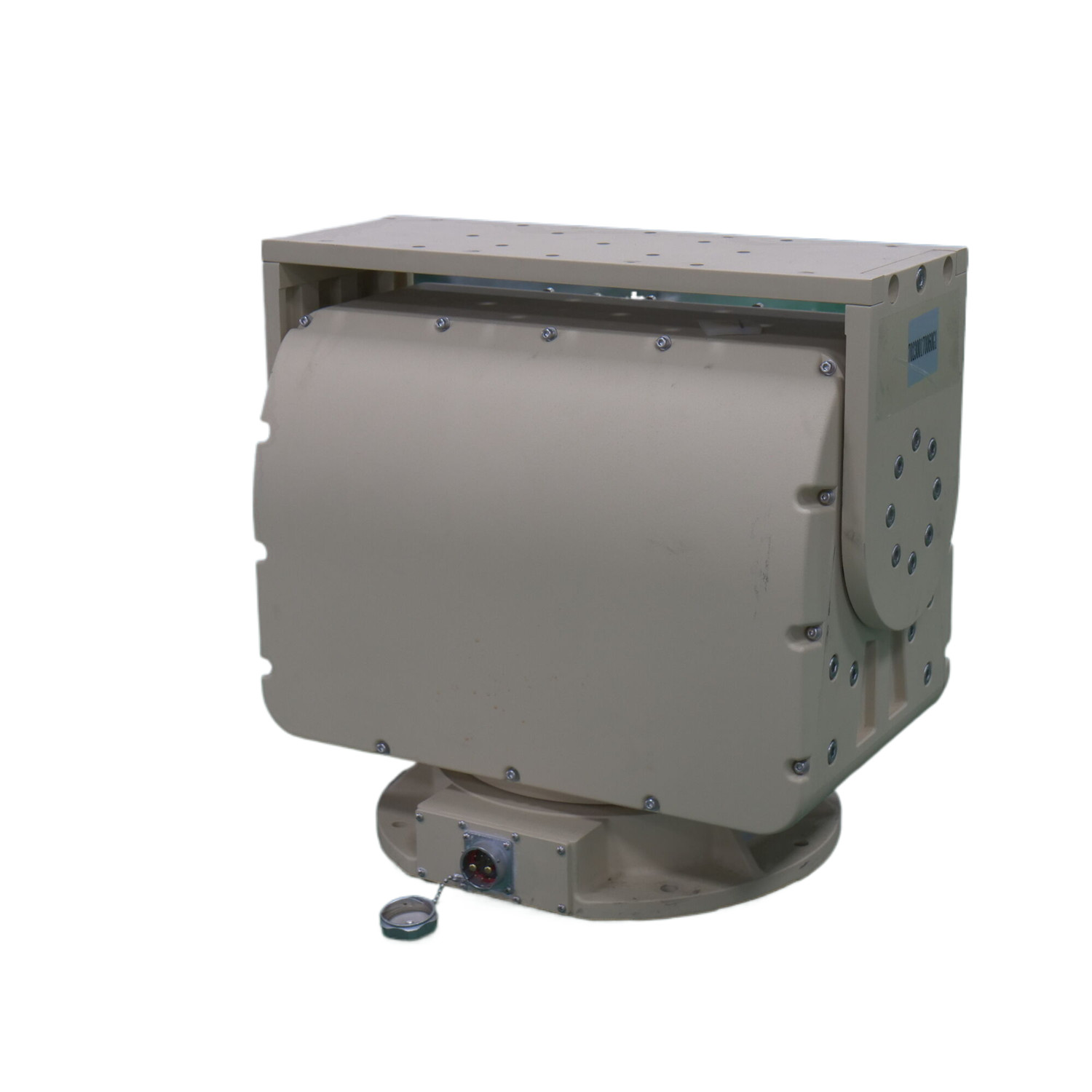

SP80 intelligent pan tilt

Flexible Communication Options:
The system supports Pelco-D/P protocols and offers multiple baud rates (2400/4800/9600/19200bps). It comes with an RS485 interface, with optional RS232 and RS422 interfaces available for greater flexibility.

The SP8080 Heavy-Duty Pan/Tilt is perfect for a wide range of applications, including:

Surveillance and Security: Ideal for monitoring large areas with precision and reliability.
Broadcasting: Supports heavy cameras for live events and studio productions.
Industrial Automation: Ensures accurate positioning for sensors and equipment in manufacturing and processing environments.
Outdoor Installations: With its IP66 rating, it is well-suited for outdoor use in challenging weather conditions.

Model	FY-SP8080
Rotating Speed	Pan:0.01º~20º/s, Tilt:0.01º~5º/s
Rotation Angle	Pan:0º~360º continuous, Tilt: +70º~ -70º (can be customized with limit switch)
Number of Presets	200
Preset Positioning Accuracy	±0.1º
Optional function	Pan tilt position data, focal length etc.
Auxiliary Switch	2 groups
Lens Preset	Support, with self-adaptive function
Auto Cruising	8 tracks (each with 10 presets)
Homing time	It can be set up within the scope of 1~60 min
Auto Scan	1 path
Protocol	Pelco-D/P
Baud Rate	2400/4800/9600/19200bps
Interface	RS485 (RS232, RS422 optional)
Input Voltage	AC220V±20%, 50/60Hz；DC48V±20%
Power Consumption	≤200W
Operation Temperature	temp: -25℃~+65℃, humidity:90%±3% RH
Storage Temperature	-40℃~+70℃
Max Load	80 kg
Load Mode	top-mounted (side-mounted optional)
Driven way	Worm-gear
Protection Class	IP66
Weight	45 kg
Size	469325405mm (LWH)
