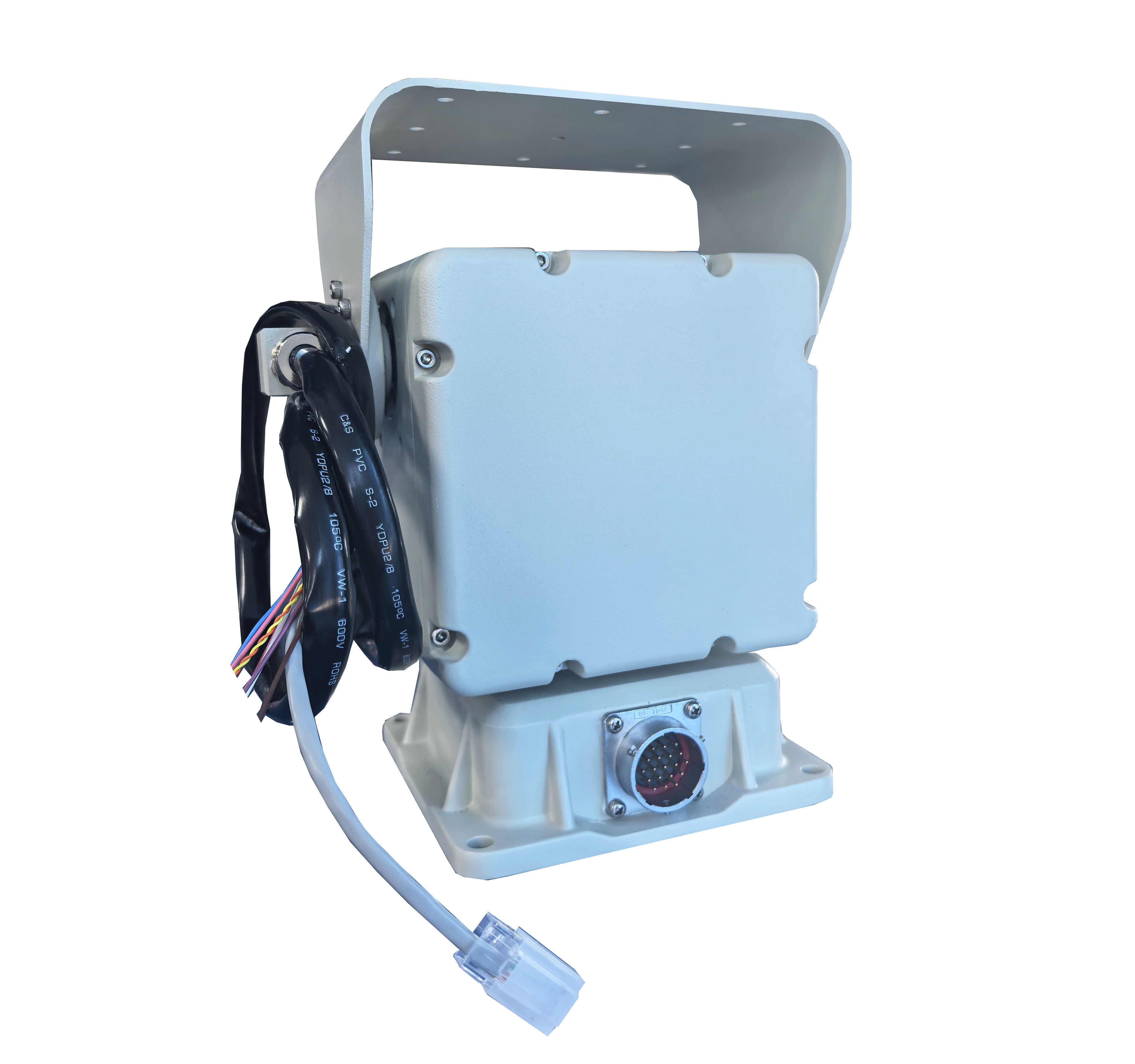

The SP05 Intelligent Pan-Tilt System is a high-performance, multifunctional positioning device specifically engineered for diverse applications such as CCTV cameras, antennas, and radar systems. This system boasts robust construction, precise control mechanisms, and state-of-the-art features, enabling it to satisfy the stringent requirements of both indoor and outdoor operational environments.
High-Speed Precision Movement:
Pan Speed: 0.01° to 30° per second.
Tilt Speed: 0.01° to 15° per second.
This ensures smooth and accurate positioning, even for fast-moving targets.
Wide Angle Range:
Tilt Angle: +60° to -60°.
Pan Angle: 360° continuous rotation.
The SP05 provides unparalleled coverage, making it ideal for surveillance and tracking applications.
Preset Positioning:
Supports up to 200 presets with an accuracy of ±0.1°.
Enables quick and precise repositioning to predefined locations.
Auto-Cruise and Auto-Scan:
Auto-Cruise: Supports 8 or 10 preset points per line for automated patrol.
Auto-Scan: Allows continuous scanning of a designated area.
Auto-Home: Configurable auto-return to home position with a timer setting from 1 to 60 minutes.
Flexible Communication:
Protocols: Supports Pelco-D and Pelco-P protocols.
Baud Rate: Adjustable baud rates of 2400, 4800, 9600, or 19200 bps.
Interface: RS485 standard, with optional RS422 for angle query feedback.
Durable and Reliable Design:
Protection Grade: IP66-rated for dust and water resistance, ensuring reliable operation in harsh environments.
Temperature Range: Operates in temperatures from -25°C to +65°C and can be stored in temperatures from -40°C to +70°C.
Power Input: DC24V±20%, with a power consumption of ≤30W.
Load Capacity:
Max Load: Supports up to 3.5kg.
Load Type: Top-load design, with an optional side-load configuration for added flexibility.
Compact and Lightweight:

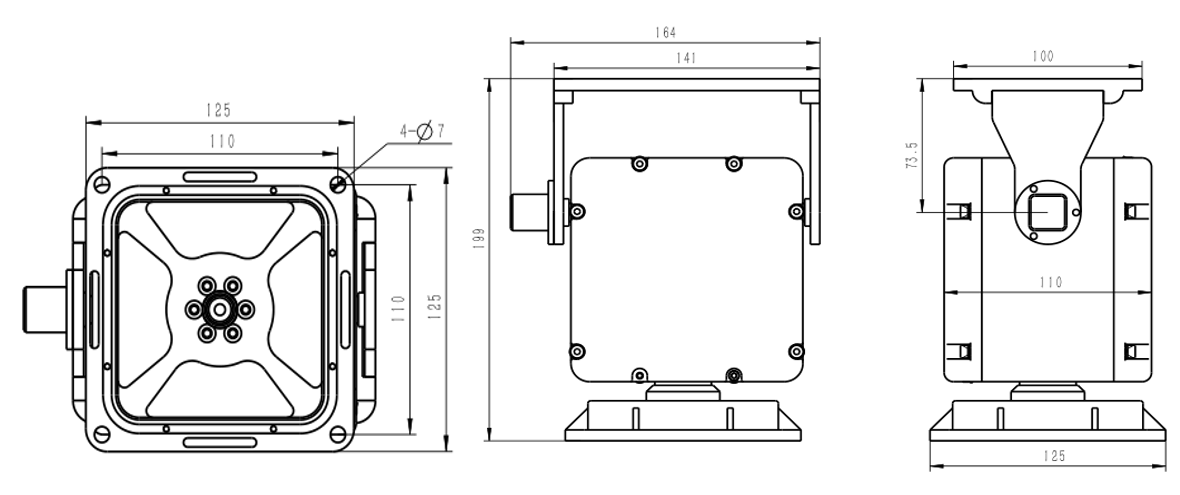

Dimensions: 164mm (L) × 125mm (W) × 199mm (H).
Weight: ≤3.5kg, making it easy to install and integrate into existing systems
