Feature

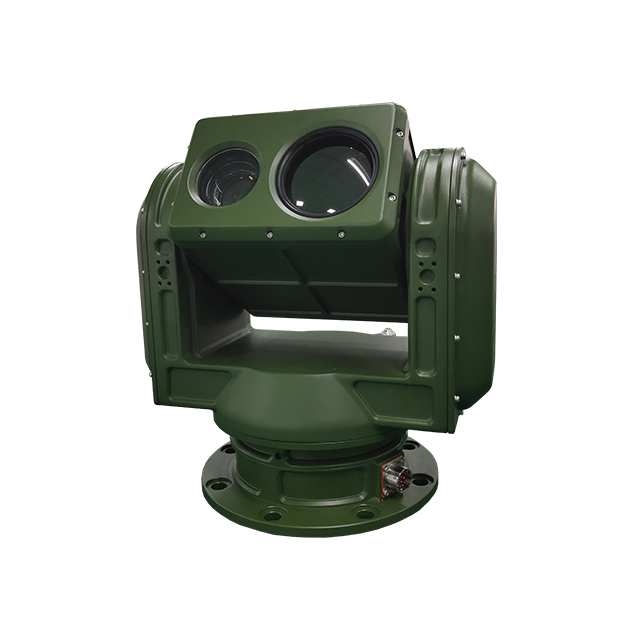

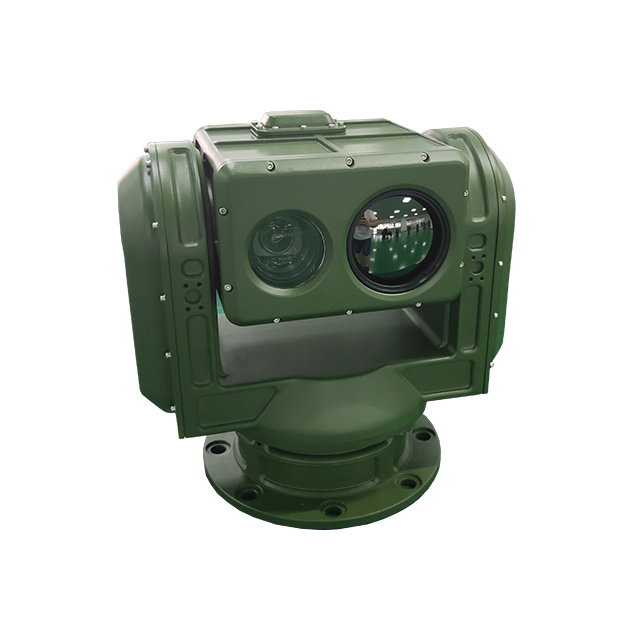

long range multisensor PTZ camera
good thermal view effect
vehicle mounting, ship mounting
can be used for border monitoring, security monitor
Specification
Distance | Thermal camera | Human(1.8m×0.5m) | Vehicle(2.3m×2.3m) | |
detection | 2100m | 6000m | ||
recognition | 520m | 1500m | ||
identification | 260m | 750m | ||
Visible | 2000m | |||
Platform Type | 2 Axis | |||
Rotation range | Horizontal | 360° horizontal rotation | ||
Vertical | +90° ~-90° | |||
Rotation speed | Orientation and vertical angle speed | 100°/s | ||
Orientation and vertical angle accelerated speed | ≥60°/s2 | |||
Precision | Stabilization precision | ≤1mrad(RMS) | ||
Optical axis overlap ratio | ≤2 pixel | |||
Visible CCTV camera | Sensor type | 1/2.8″ CMOS | ||
Valid pixel | 2.1 MP | |||
Focal length | 7.9~316 mm, 40X optical zoom | |||
Iris | F1.8~F6.0 | |||
FOV | 41.3°(wide)~2.0°(tele) | |||
Focus | auto/manual/zoom trigger | |||
Lowest illumination | 0.02Lux/F1.8(color);0.01Lux/F1.8(black&white) | |||
White balance | Auto/auto-tracking/ | |||
SNR | ≥50db | |||
Thermal camera | Detector | uncooled microbolometer focal array (Vox) | ||
Valid pixel | 640×512 | |||
Spectrum range | 8~14μm | |||
NETD | ≤50mK@F1.0,300K | |||
Focal length | 75 mm | |||
FOV | 8.3°×6.2° | |||
IFOV | 0.23mrad | |||
Frame | 25Hz | |||
Image process | 4× digital zoom, pseudo color | |||
OSD | real-time video overlay current date, time, longitude, latitude, altitude, speed, pitch angle info, with function of display and blanking overlayed character | |||
Interface | Power supply interface | DC(direct current) | ||
Others | Ethernet video output | |||
Environmental indicators | Operation temperature | -35ºC~+60ºC | ||
Storage temperature | -40ºC~+65ºC | |||
Protection grade | IP66 | |||
Anti-vibration | 10~150Hz, 2g accelerated speed, 3 axial direction sweep frequency 7.5hours | |||
Anti-impact | 150m/s², 11ms | |||
Power supply | Operation voltage | DC12V~24V | ||
Whole consumption | continuous consumption≤55W, Peak consumption≤70W; | |||
Others | Weight | ≤16Kg | ||
Size | 340×320×240mm | |||
Installation way | Base installation | |||
Assumptions: 50% probability of achieving objective at the specified distance given a 2-degree temperature difference and 0.85/km atmospheric attenuation factor. Actual range may vary depending on camera setup, environmental conditions, user experience, and type of monitor or display used.
